Laserliner ZipLevel Plus 30

Precise altitude measurement

Altimeter Ziplevel is a new generation device based on patented gas-liquid system that digitally measures and displays difference in levels with precision in any terrain or between two surfaces or points. The Ziplevel allows levels to be transferred to other points without any requirement of line of sight or use of leveling staff and provides a genuine one man operation in any construction or survey activity. The Ziplevel is also specifically useful in construction & inspection of embankments, bridges & foundations without the need for additional accessories.

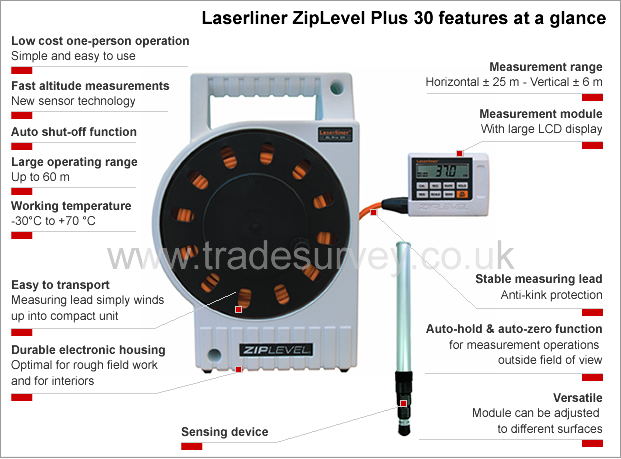

Laserliner Ziplevel Plus 30 - Overview

Simple to use Easily and quickly measures altitudes. So simple to use it enables low cost operation by one person, saving man hours.	Large operating range Up to 50 m, plus Auto-Hold and Auto-Zero function enable measurement operations outside field of view (for large heights or deep ditches).
Easy to transport Measuring lead simply winds up and the compact unit can then be moved safely.	Durable design Idea for rough field work with its' rugged housing and large display.

Additional information

• Patented gas-liquid system allows a working temperature from -30°C to +70°C
• Constant measuring precision with a pressurized system up to 50 m: + 3 mm, temperature and air pressure compensation.
• Fast measuring times by a new sensor technology.
• Versatile: Can be adjusted to all surfaces of the measurement module.
• Auto shut-off function.
• Stable measuring lead with anti-kink protection.

The benefits of the Laserliner Ziplevel Plus 30:

Benefits	Popular with
Measurement range: Horizontal ± 30 m Vertical ± 6 m	Property developers
Operating range: Max. 60 m	Property tradesmen
Working temperature: -30°C to +70°C	General construction & ground workers
Units: mm/cm/m	Fencing contractors
Reference point: Base or front of the measurement module	Concrete bases and foundations
Power supply: 9V battery	Digger operators
Robust, water & dust protected: IP 67	Landscapers

For free friendly advice simply call 0845 2572188 and ask for a Laserliner product specialist or email [email protected]
